TP-Link TG-3468

Kompletné špecifikácie

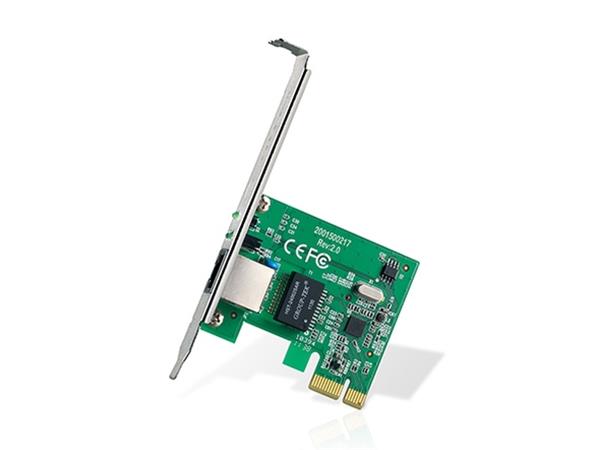

Gigabitový síťový adaptér PCI Express

TG-3468


Adaptér 10/100/1000 Mbit/s PCIe

32bitové rozhraní PCIe, šetřící místo v šasi

Technologie Wake-on-LAN umožňující řízení přes místní síť LAN.



HARDWARE FEATURES




Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP


Interface

32-bit PCI Express

1 10/100/1000Mbps RJ45 port


Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)


Data Rates

10/100/1000Mbps for Half-Duplex mode

20/200/2000Mbps for Full-Duplex mode


LED Indicator

1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act


Flow Control

IEEE 802.3x Flow Control (Full-Duplex)



OTHERS




Certification

CE, FCC, RoHS


Package Contents

Gigabit PCI Express Network Adapter TG-3468

Resource CD

Quick Installation Guide


System Requirements

Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)


Environment

Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
